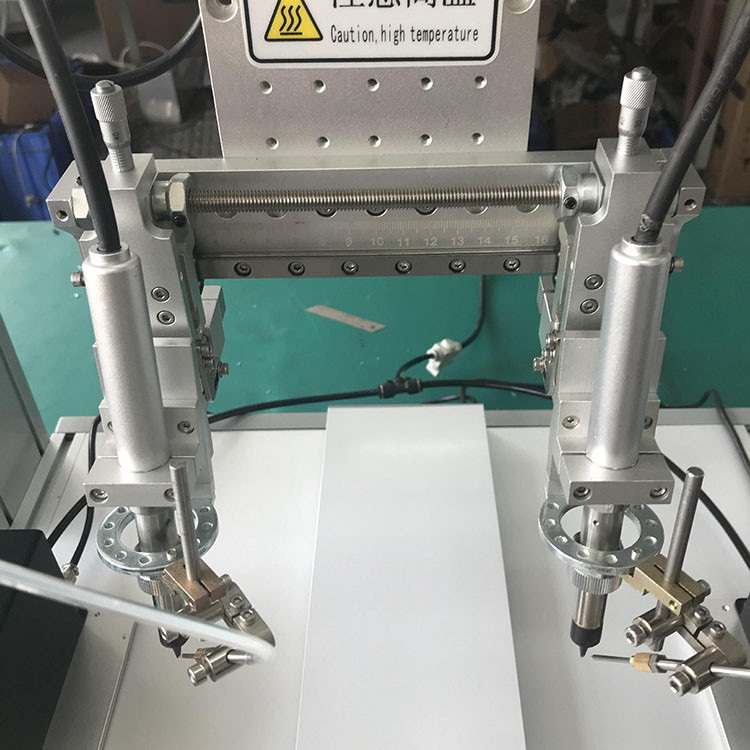

Desktop Mini Wave Automatic Soldering Machine Customize 350W For PCB LED USB

Brand Name : HJD

Model Number : HY-S

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 300 sets/month

Delivery Time : 10 days

Packaging Details : Hard paper box packing

Product name : desktop automatic soldering machine

Function : Multifunctional Automatic Soldering Robot

Temperature Range : 0-500

Soldering material : Soldering Wire

Motor system : Stepper Motor

Power(W) : 350W

Solder size : Welded Core

Suitable for : PCB,LED,USB,SMD...

Operating Range (X ) : 200~600mm

Contact Now

Automatic Soldering robot can Solve many businesses artificially shortages, production efficiency, low labor and material consum accounts cost increase, management and so on many substantive issues.

Functions:
* Spot soldering,drag soldering,automatic cleaning and multi-angle soldering;
* Position calibration, soldering dot array, parameter copy, automatic location and skiping;
* Teaching programming enables customers to implement all types of handheld soldering upon their requirement;
* Program calibration achieves workpiece integrally, coordinates position compensation;
* Program insertion and deletion makes program revised easily and rapidly;
* Intelligent controling system achieves accurate feeding of solder, speed/time/temperature/quantity for solder can be adjusted and controlled accurately.

Solder robot Advantages:

Cost saving	High-efficiency operation is achieved by only one person.one person's efficiency is higher than 3-5 persons' efficiency
Good quality	Good soldering uniformity achieved high yield
High efficiency	Multiple soldering tips work together at the same time to reach higher efficiency
More simple	One worker can operate 2-3 robots. what this worker does is only pick and place fixture
Customization	Robot is customized strictly, based on customers' requirements on products and soldering production,in line with requirements of producing lines
Good image	Intelligent automatic equipment presents a new appearance of production line in factories, which helps enterprises establish a better image of high technology

3 axis solder robot Characteristic

Ruling Axle		3 Axis					2 Y Axis
Range of operation	X	200mm	300mm	400mm	500mm	600mm	400mm	500mm	600mm
	Y	200mm	300mm	400mm	500mm	600mm	300mm	300mm	300mm
	Y	/	/	/	/	/	300mm	300mm	300mm
	Z	100mm	100mm	100mm	100mm	100mm	100mm	100mm	100mm
Fast speed		300mm/S (max 800mm)
Repeated accuracy		±0.02mm
Control system		Fulltime or constant-control handheld control system
Driver mode		Japan steping motor + synchronous belt + Taiwan silver linear guide rail
Program storage		Can storage 1000 sets of datas,single file max 3M(5000 solder points)
Power		AC220V 50-60HZ, 350W
Machine size	W	470	580	620	780	880	580	580	580
	D	410	520	680	720	820	620	720	820
	H	525	600	600	600	600	590	590	590
